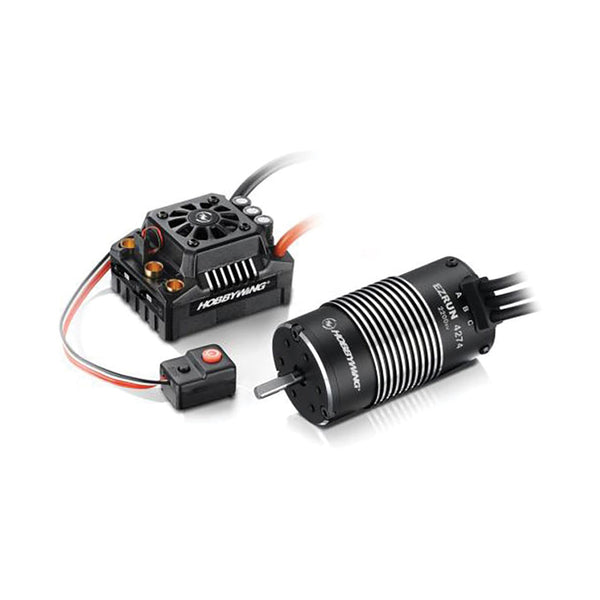

HW38010402 Hobbywing EZRUN-COMBO MAX8-T PLUG-4268/2600KV

Hobbywing combo with Max8 speed control and 4268 2600Kv motor.


High Reliability & Durability

Reliable hardware combined with advanced software allows the ESC to not only provide extremely high output but also protect itself timely from damages caused by overload. It significantly reduces the possibility of getting damaged by heavy load and improves the reliability and durability.

Great Flexibility & Versatility

The ESC has strong outbreak and stable output, so vehicle can do different moves without a problem, no matter aggressive start-up and wheelie, 720-degree flip (note 1), high speed running on straight tracks or flying over slopes. It always provide the power more than sufficient. Besides, driver can adjust relevant parameters for smooth and soft start-up. Note 1: Not every vehicle can do the 720-degree flip because of different chassis design. It’s known that HPI SAVAGE can do this move.

Applicable to All Weather Conditions

Outstanding waterproof and dust-proof capability makes the ESC applicable to all weather conditions, no matter the track is covered with dust, gravel, snow or puddles.

Super Built-in BEC

The world’s 1st 1/8th scale ESC adopted the super built-in BEC with the max. output current of up to 15A and switchable output voltage (6V/7.4V). It can drive different servos, high voltage servos at ease and bring amazing control feel to drivers.

Advanced and Secure Electronic Switch

The electronic switch with the lifespan of over 50000 times of switching on & off features a completely waterproof, dust-proof and shock-resistant design, completely solved problems like stuck reed and rust contact points caused by dust and moisture, switching off automatically caused by violent dash (like landing after flying over slopes) conventional mechanical switches often have.

Plug and Play

Standard 6.5mm gold-plated connectors at the ESC’s output end are perfectly compatible with stock motor connectors of many popular 1/8th scale monster trucks like TRAXXAS’s and HPI’s. Moreover, TRAXXAS style or DEANS/T plug(s) have been soldered to the ESC’s input end for different battery connectors, driver can plug and play
and free from possible re-soldering work. For perfectly matching the mounting holes on TRAXXAS chassis, we have added some mounting holes to the ESC case accordingly.

Wide Applicability

The ESC provides the optimal upgrade solution for many popular 1/8th scale monster trucks like TRAXXAS E-REVO & E-MAXX, HPI SAVAGE, and THUNDER TIGER E-MAT.
It’s also applicable to other trucks and buggies.

Almost Maintenance Free

The whole ESC except the cooling fan is basically maintenance free. Besides, the fan has also adopted the special anti-shock design, reduced damage brought by frequent jumps of the vehicle, greatly reduced maintenance work to the fan.


Specification

Scale - 1/8th

Brushed/Brushless - BL

Sensored/Sensorless - SL

Waterproof - WP

Cont./Peak Current - 150A/950A

Input Voltage - 3-6S LiPo/9-18 Cells NiMH

BEC Output - Switch Mode:6V/7.4V，6A

Input Wires - Red-10AWG-200mm*1/Red-10AWG-150mm*1/Black-10AWG-150mm*1

Output Wires - Black-10AWG-200mm*3

Input Connectors - T Plug/Traxxas Plug

Output Connectors - 6.5mm Famale Gold Connectors (pre-soldered onto the PCB)

(Note: All the wire length above is the original length not the length you see from the outside.)

Fan Size - 30x30x10mm

Voltage Range - 5-7.4V

Powered by - Powered by BEC

ESC Programing via

SET Button on ESC - Supported

LED Program Box - Supported

LCD Program Box - Supported

WiFi Module - Supported

Program Port - FAN/Program Port


Firmware Upgrade - Supported

Size - 59.8x48.0x36.8mm

Weight - 174g

Motors - SL BL Motors/SD BL Motors(only in SL mode)

Vehicles - 1/8thTouring Car/Buggy/TrucK

KV Rating/T Count - 4S LiPo:KV≤3000;/6S LiPo:KV≤2400(40XX Series of Motors)


Motor Specification

High Torque
The 4 pole design will guarantee the motor to produce very large amounts of torque, a much faster acceleration response and a very stable output of power to the drivetrain

High Efficiency
Hobbywing’s temperature control technology has been designed to protect the motor from being damaged by heat thus less heat more efficient the motor will run and perform. The output performance of this motor has an efficiency rate of up to 90% meaning that if the energy consumption of the motor is at 1000 watts your guaranteed that 900 watt of that power will be available and no less.

Great Construction
The motor housing is made from hard anodized aluminum, motor windings are wound from pure oxygen-free double insulated copper wire, the advanced rotor structure is designed to handle high temperature from the use of rare earth magnets, output shaft from high quality polished alloy steel and the imported bearings which are implemented are high precision metal caged for a minimum to zero friction which in turn will guarantee strength, outstanding performance, high durability and smoothness of the motor.

Wide Application
This motor can also provide a powerful upgrade solution for all popular 1/8th scale monster trucks such as TRAXXAS E-REVO, E-MAXX, HPI SAVAGE, and THUNDER TIGER E-MAT plus other trucks and buggies.
