SSD RC SSD00220 SCX10 II Portal Knuckles

These are the updated Portal Knuckle kit, with higher durability CVD shafts!

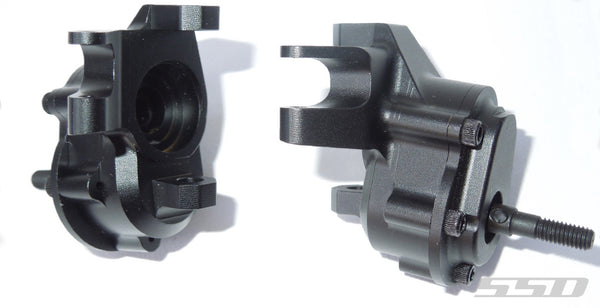

SSD SCX10 II Portal Knuckles.

Features:

• CNC machined aluminum portal knuckles
• Anodized black
• CNC machined, hardened steel gears
• CNC machined, hardened steel CVDs
• Large 13mm bearings
• Portal conversion for SCX10 II RTR one piece front axle
• Direct fit onto SCX10 II AR44 C hubs
• Fit stock SCX10 II steering links
• Fit stock SCX10 II wheel hex
• Increase ground clearance by 12mm
• Increase track width by 23.4mm (11.7mm each side)
• Gear ratio can be reversed and used to overdrive front axle
• Fit all SSD 1.9 wheels
• Matching rear portal axle is available (SSD00284)

• (2) (Left, Right) Assembled Portal Knuckles
• (2) Portal CVDs
• (4) Brass sleeves
• (4) M3 x 10mm  screws
• (1) M3 x 14mm  screw
• (1) M3 x 20mm  screw

• SSD does not recommend using these on plastic AR44 axles with removable C hubs.
• 1.9 beadlock wheels with an inside ring will not have enough clearance.
• Knuckle weights will be made available in future.
